Our fume extraction arms system is a kind of high efficiency device specially designed for using in the laboratories frequently. It is applicable to environment that has close contact with volatile corrosive substances. It can remove harmful gas, smoke and dust to ensure the ideal and safe air, and keep away hazardous substances from the human body effectively, so can protect the user.
It has been widely used in various experiment and production fields, such as electronic engineering, Iaser technology, chemistry, medical treatments, pharmacy, food industry, laboratories, production factories, schools and the places, where promote the productivity and working performance effectively.
Our fume extraction arms can keep hanging status automatically. The system is connected with crosshead made of stainless steel to reduce noise and loss of pressure, and it can be adjusted to any place conveniently by independent sustaining springs(inside and outside).
It is very easy to operate and maintain the products. They can be adjusted to another place by one hand, and can be disassembled and washed without any tools.
It is very easy to install the products on the table, on the wall, on the ceiling and can also be installed on the production equipment.

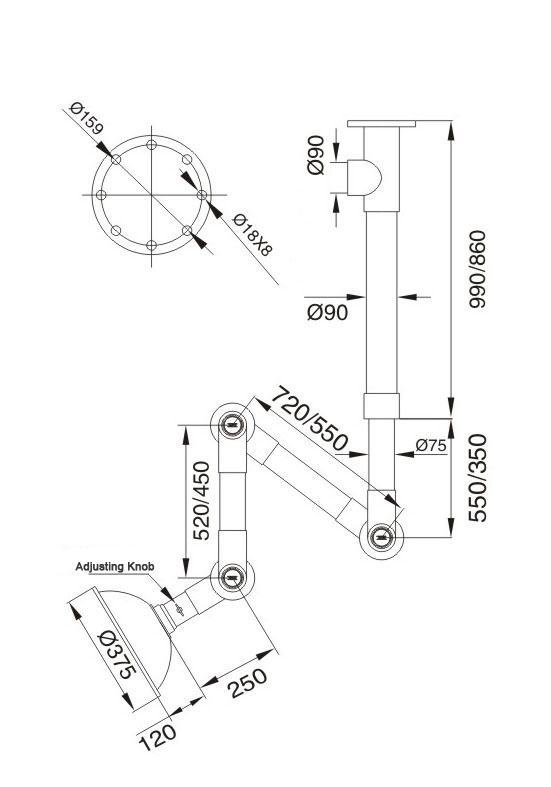

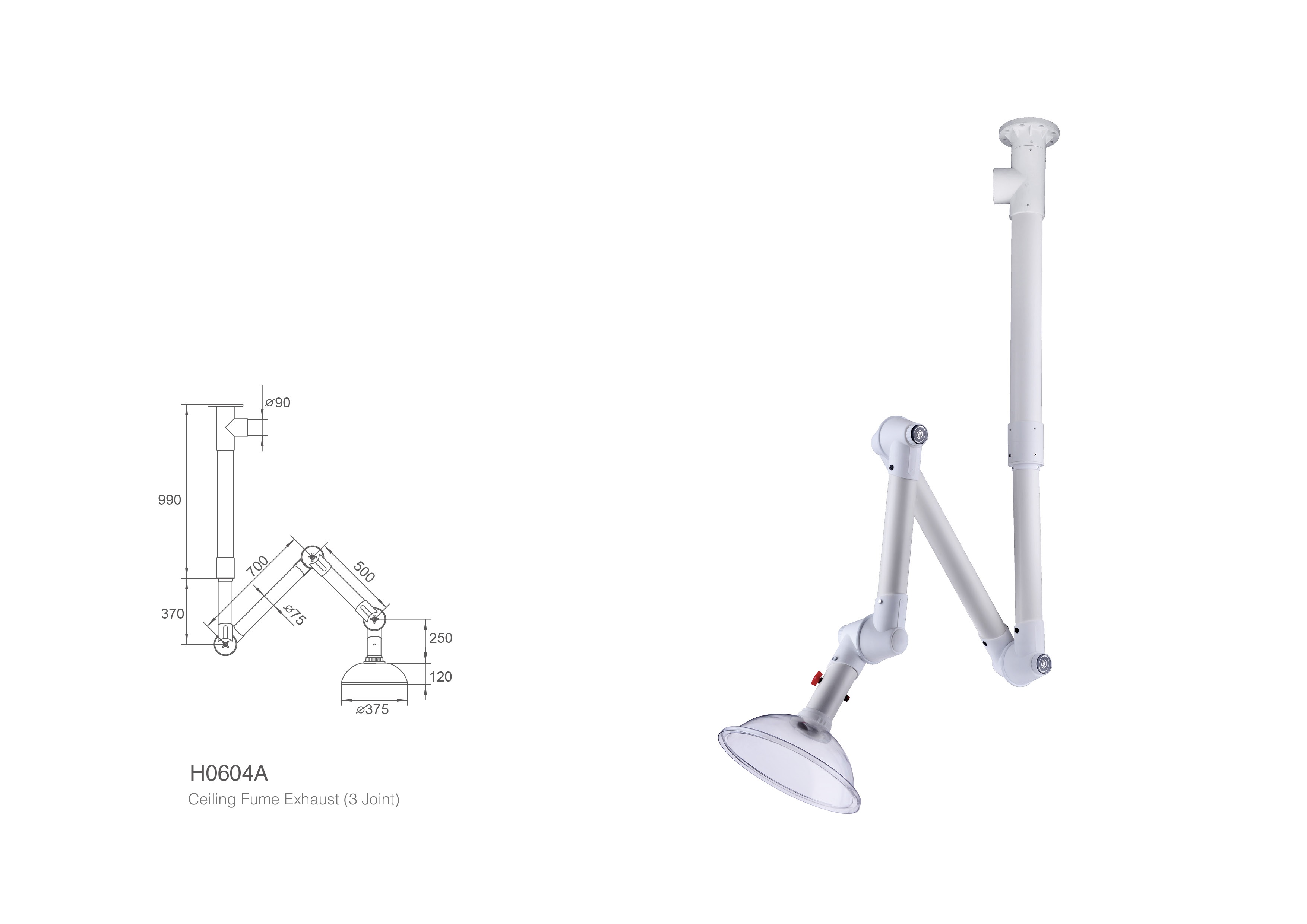

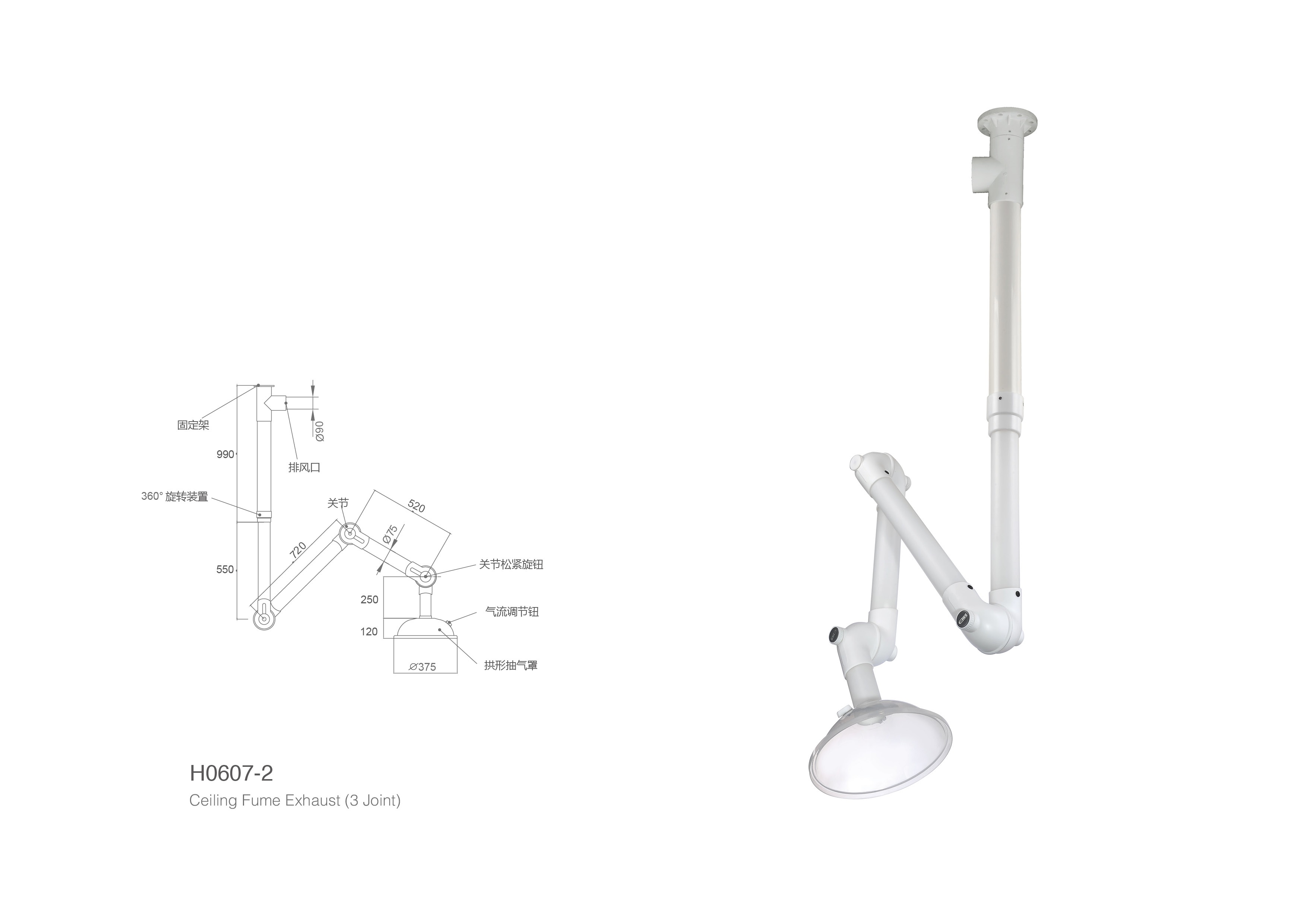

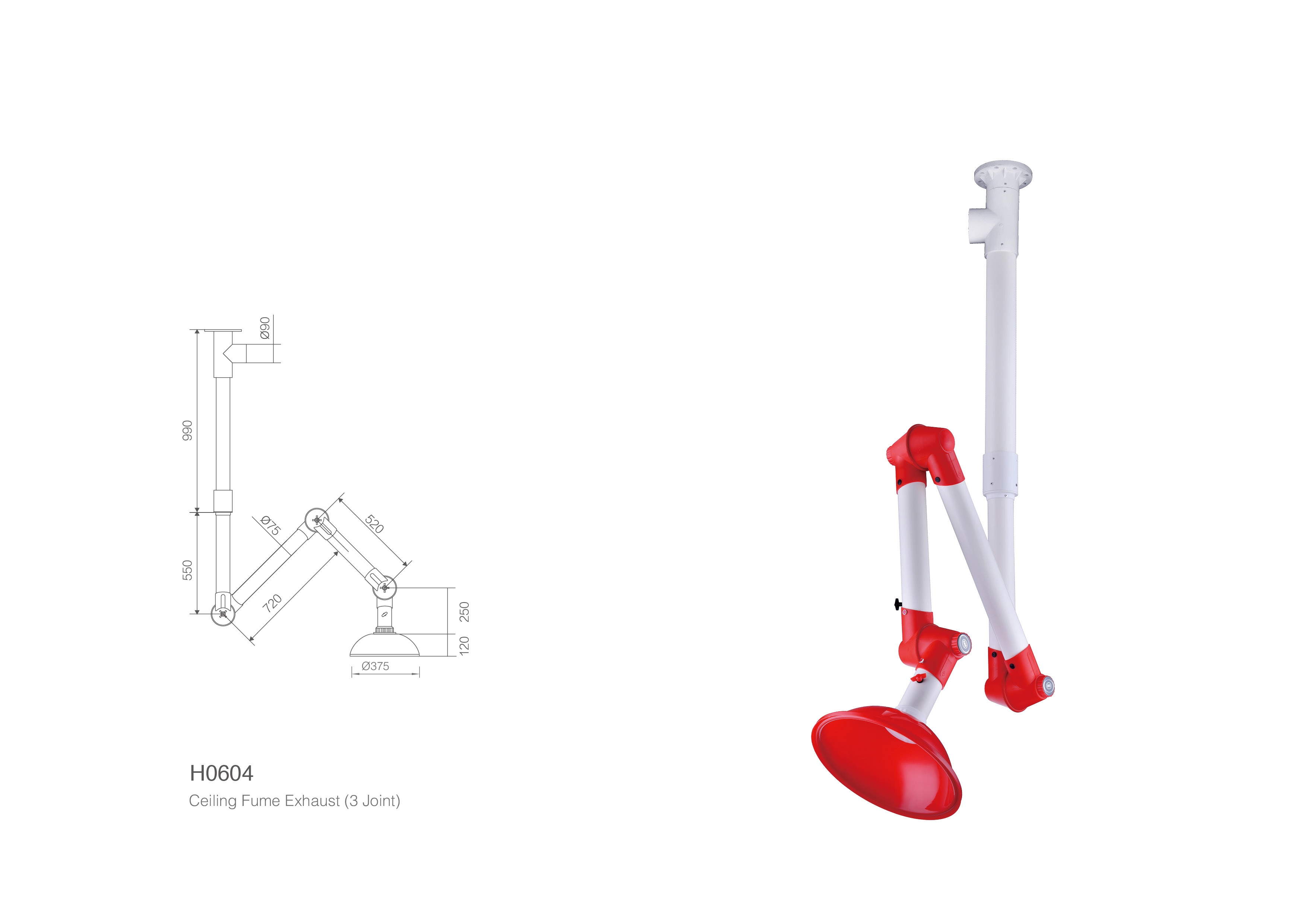

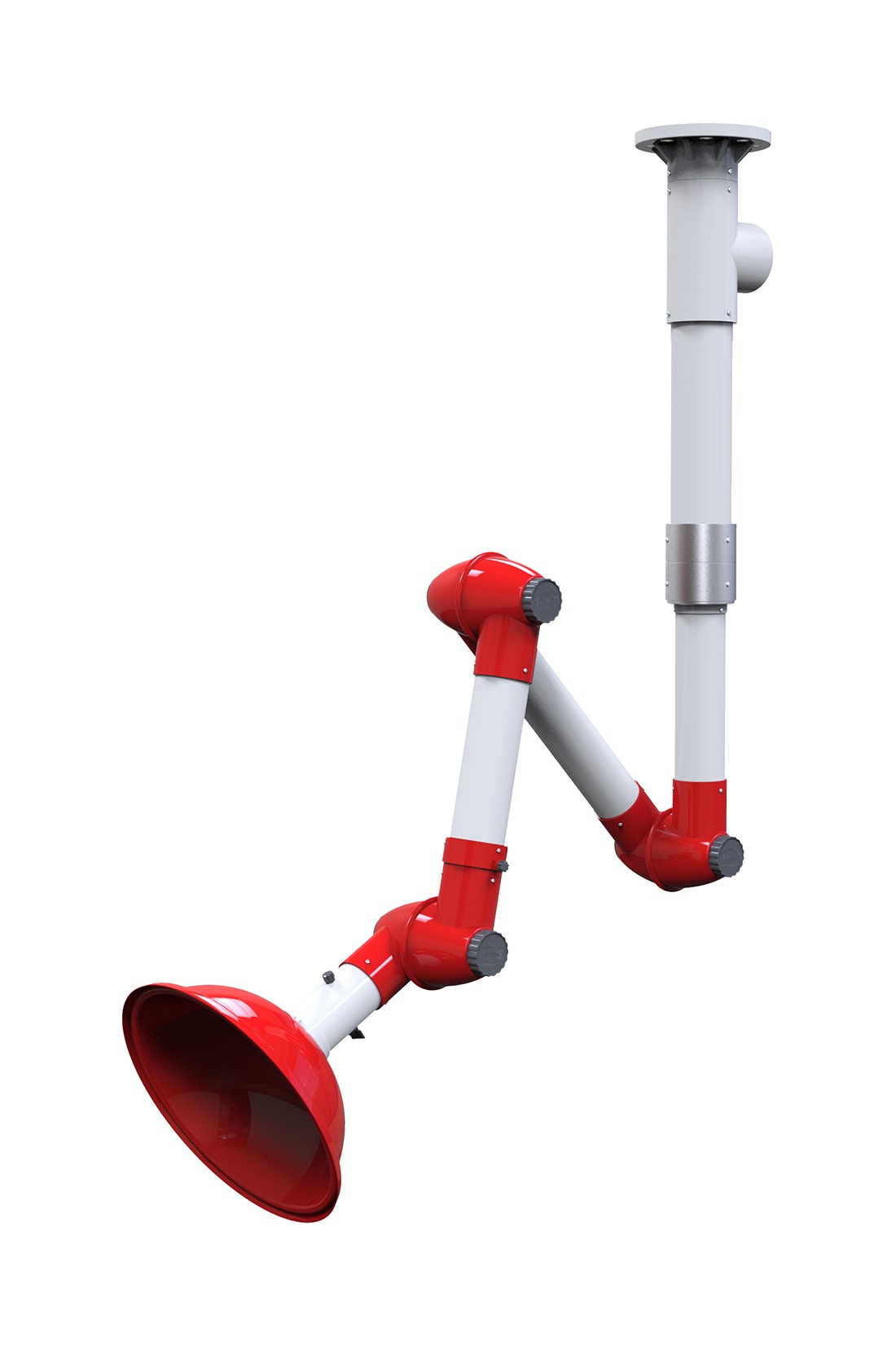

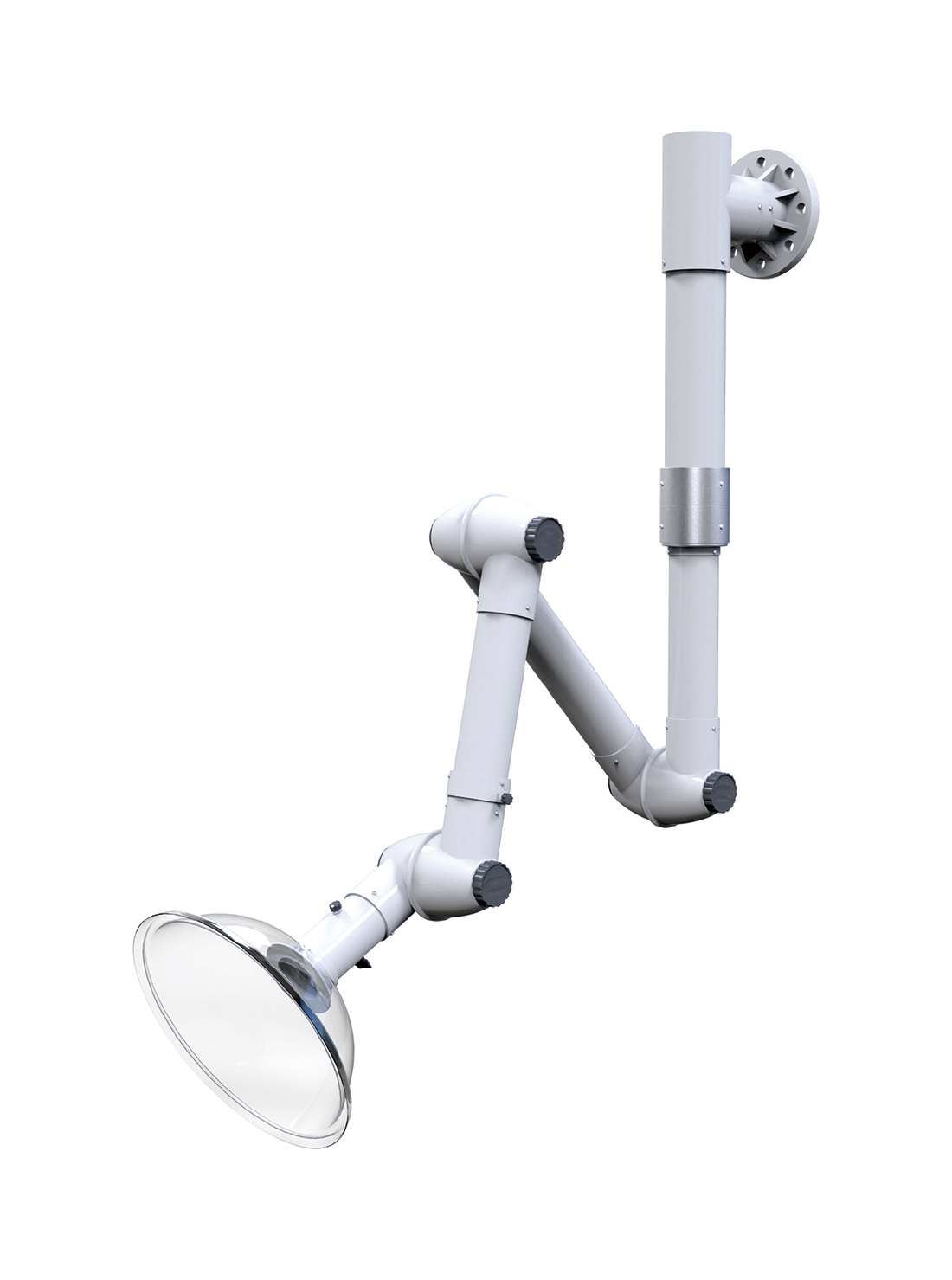

PP Fume Extraction Arm
Joint: high grade PP, to be 360°swiveled. Easy to dismantle, assemble and clean.
Sealing ring: low-friction treadted rubber
Center bolt: 304 stainless steel
Adjustable joint knob: totally brass with a stainless steel bearing inside locked with center bolt
Damper: for adjusting the air flow with a knob manually
Dome/Cup Hood: high grade PP/PC
Tube: 75mm, PP
Swing Device: with 360°swing device, taking fixed rack as center, enabling the movement radius to Max. 1600mm
Installation Bracket: injection plastic by a complete mold.

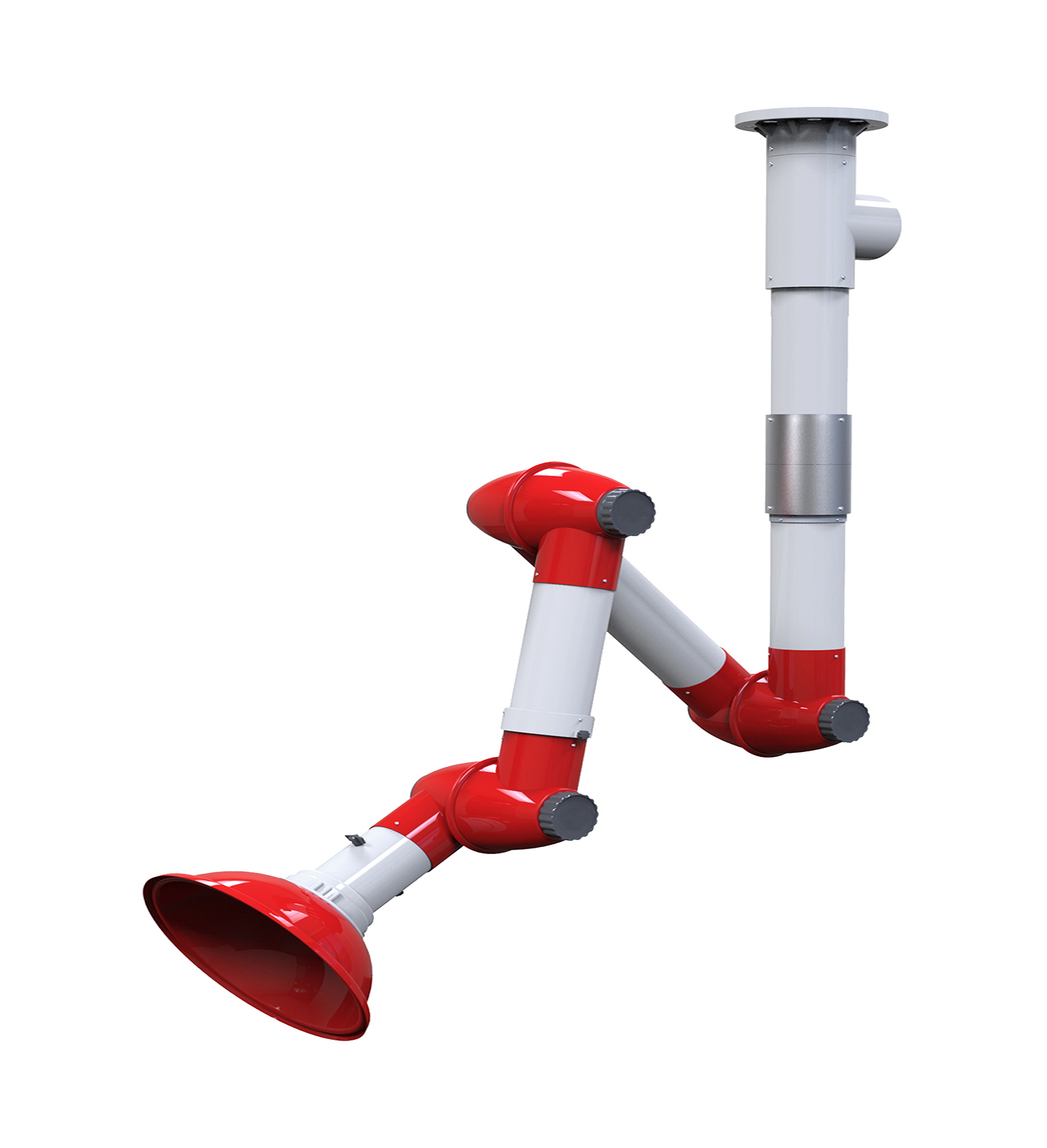

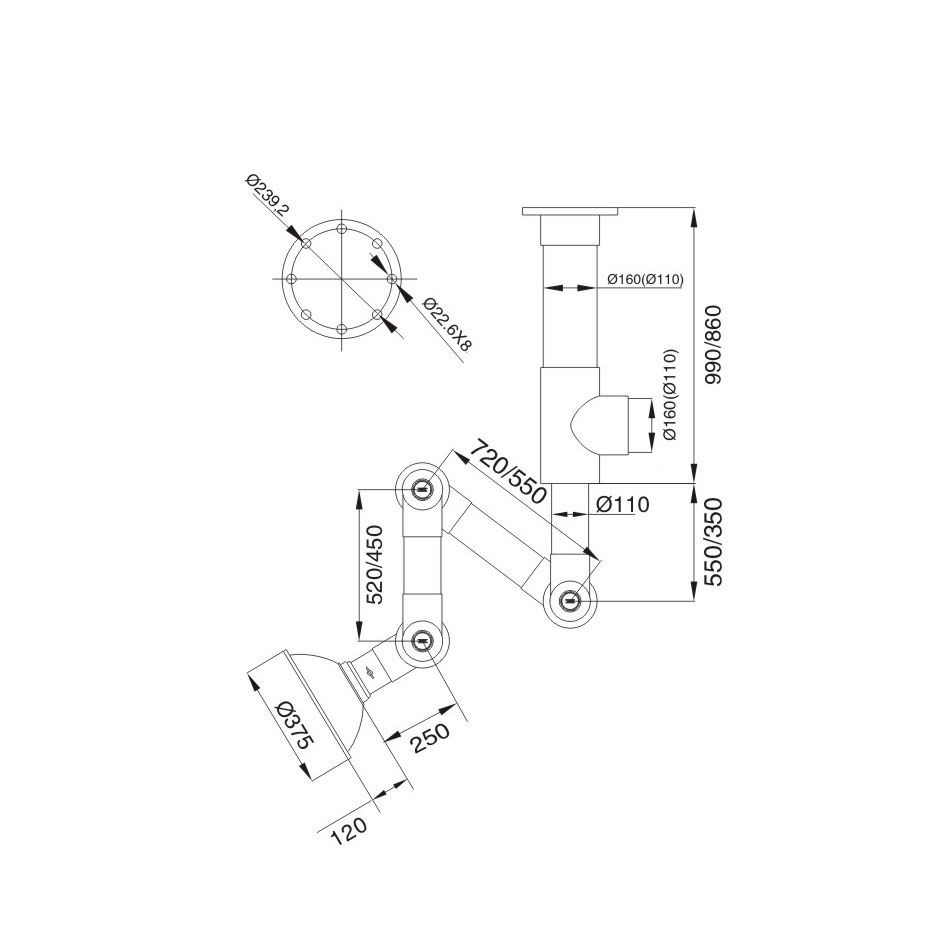

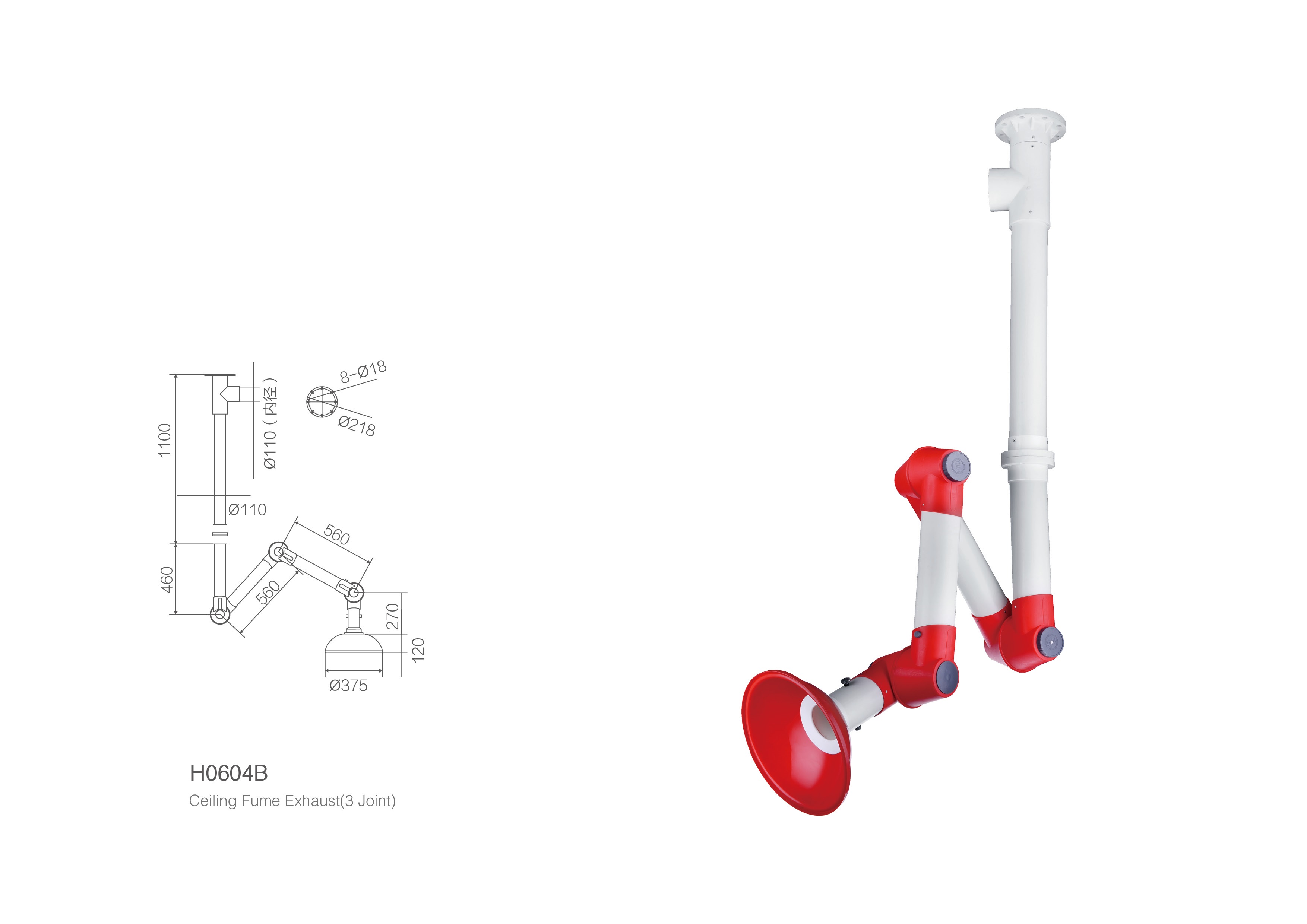

110mm Fume Extraction Arm
Joint: high grade PP, to be 360°swiveled. Easy to dismantle, assemble and clean.
Sealing ring: low-friction treadted rubber
Center bolt: 304 stainless steel
Adjustable joint knob: totally brass with a stainless steel bearing inside locked with center bolt
Damper: for adjusting the air flow with a knob manually
Dome/Cup Hood: high grade PP/PC
Tube: 110mm, PVC/PP
Swing Device: with 360°swing device, taking fixed rack as center, enabling the movement radius to Max. 1600mm
Installation Bracket: injection plastic by a complete mold.

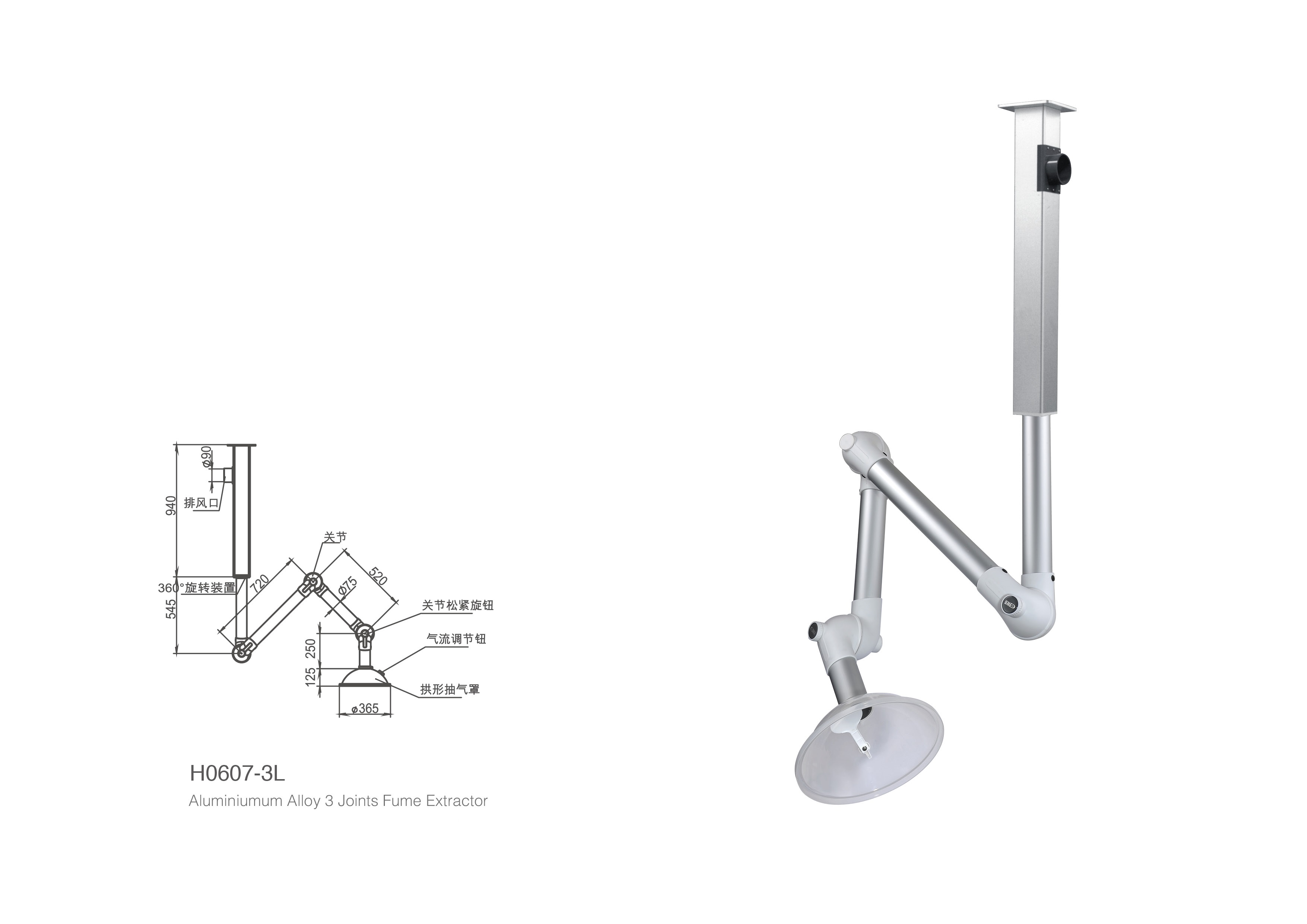

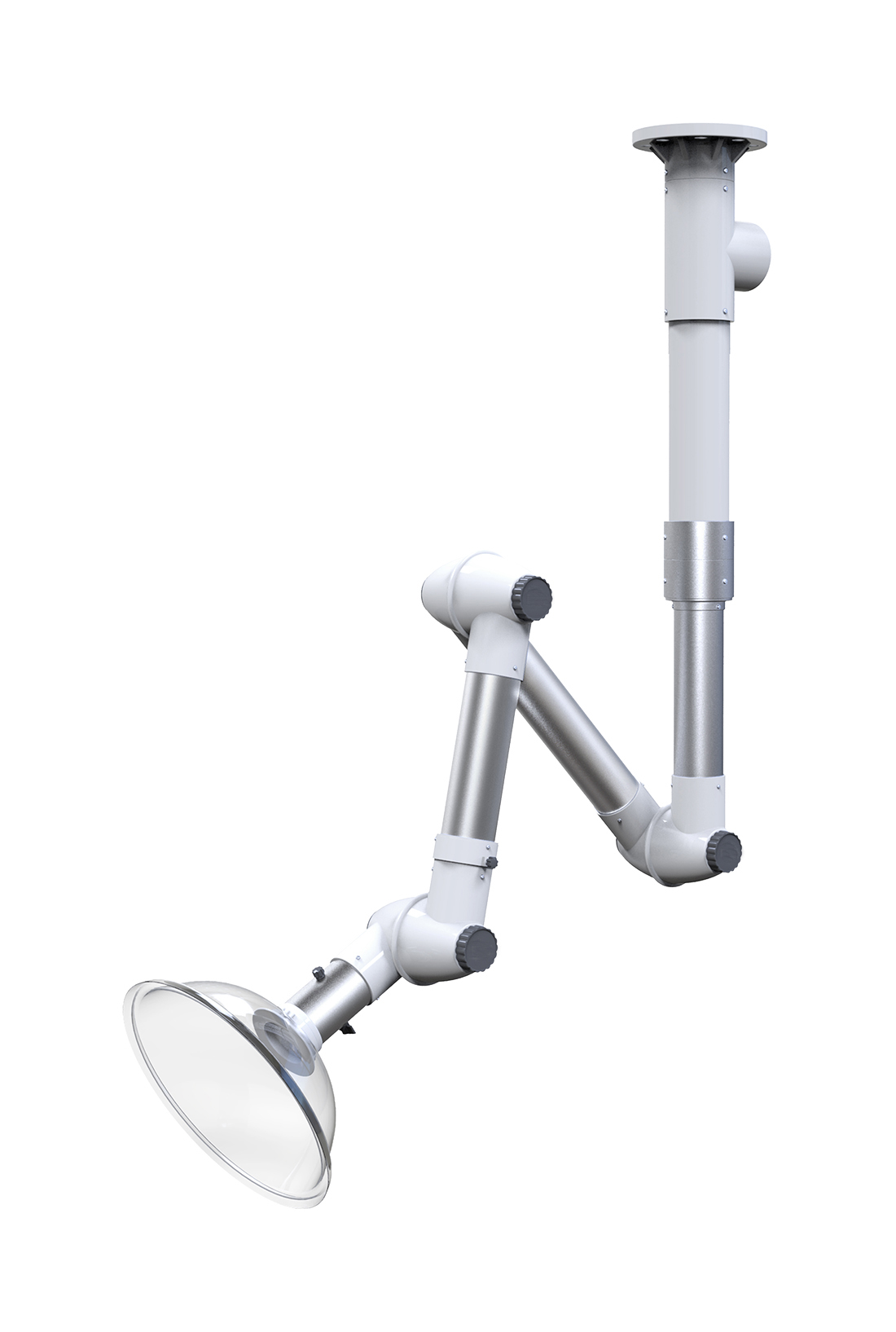

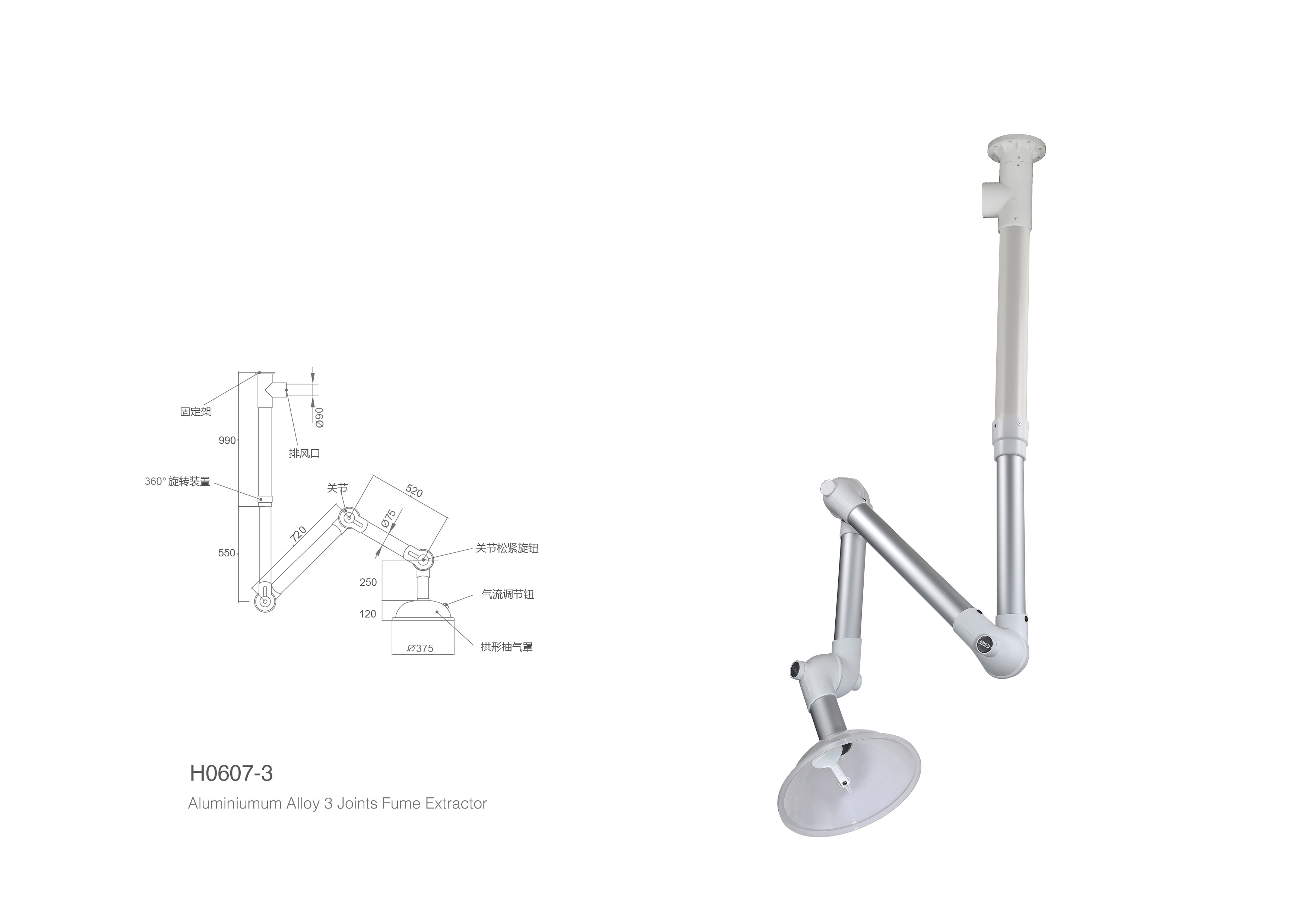

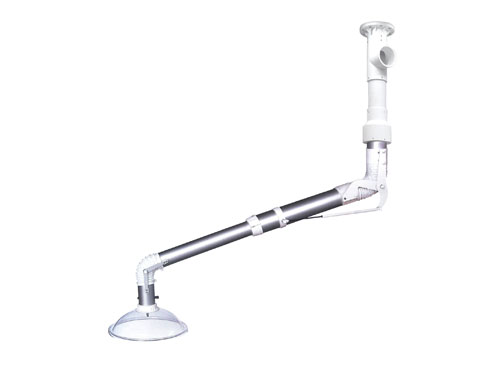

Aluminum Alloy Fume Extraction Arm
Joint: high grade PP, to be 360°swiveled. Easy to dismantle, assemble and clean.
Sealing ring: low-friction treadted rubber
Center bolt: 304 stainless steel
Adjustable joint knob: totally brass with a stainless steel bearing inside locked with center bolt
Damper: for adjusting the air flow with a knob manually
Dome/Cup Hood: high grade PP/PC
Tube: 75mm, aluminum alloy
Swing Device: with 360°swing device, taking fixed rack as center, enabling the movement radius to Max. 1600mm
Installation Bracket: injection plastic by a complete mold.

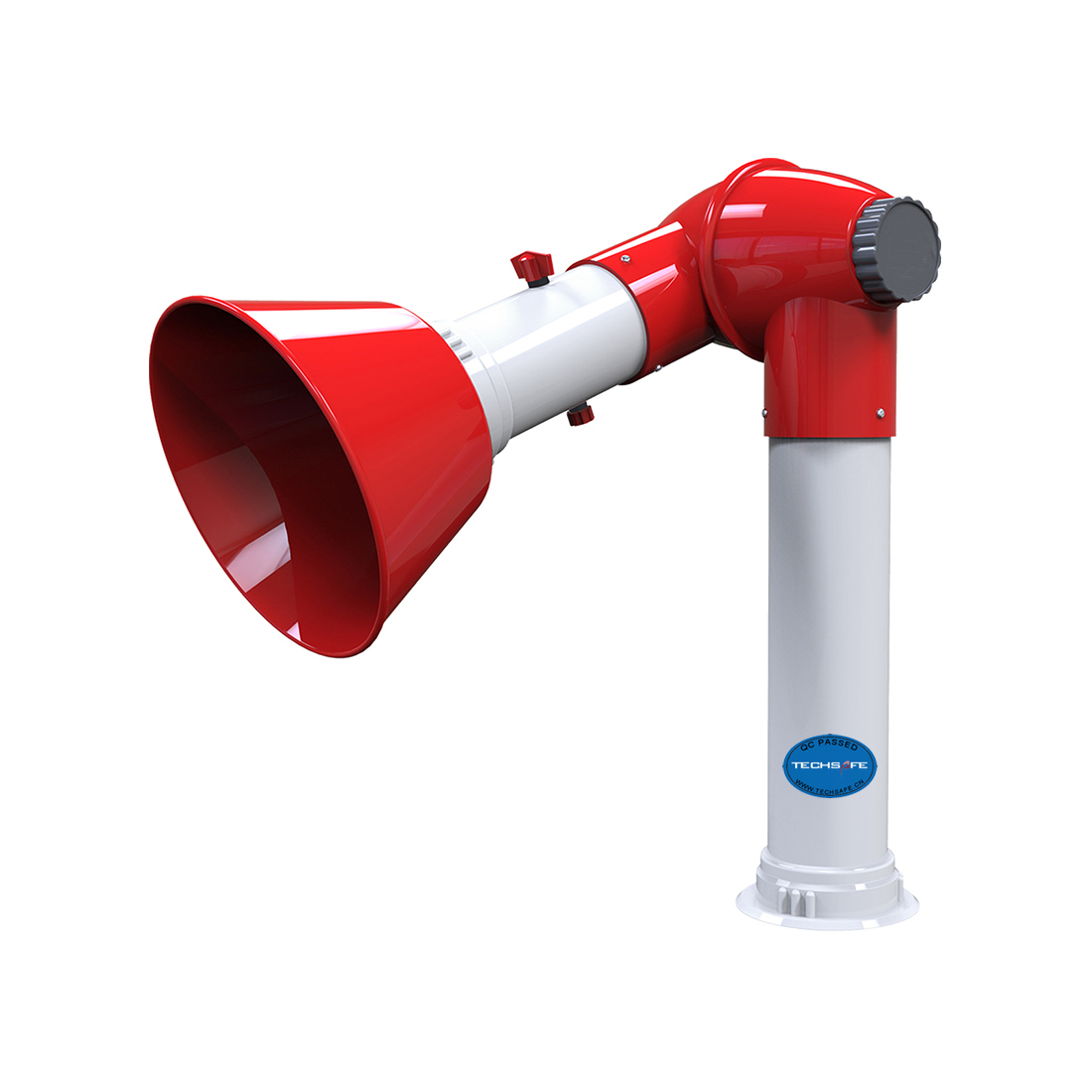

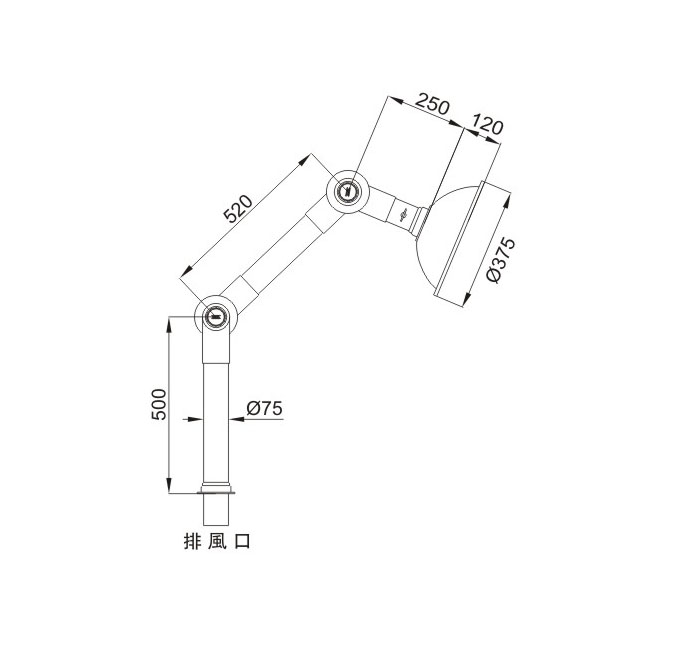

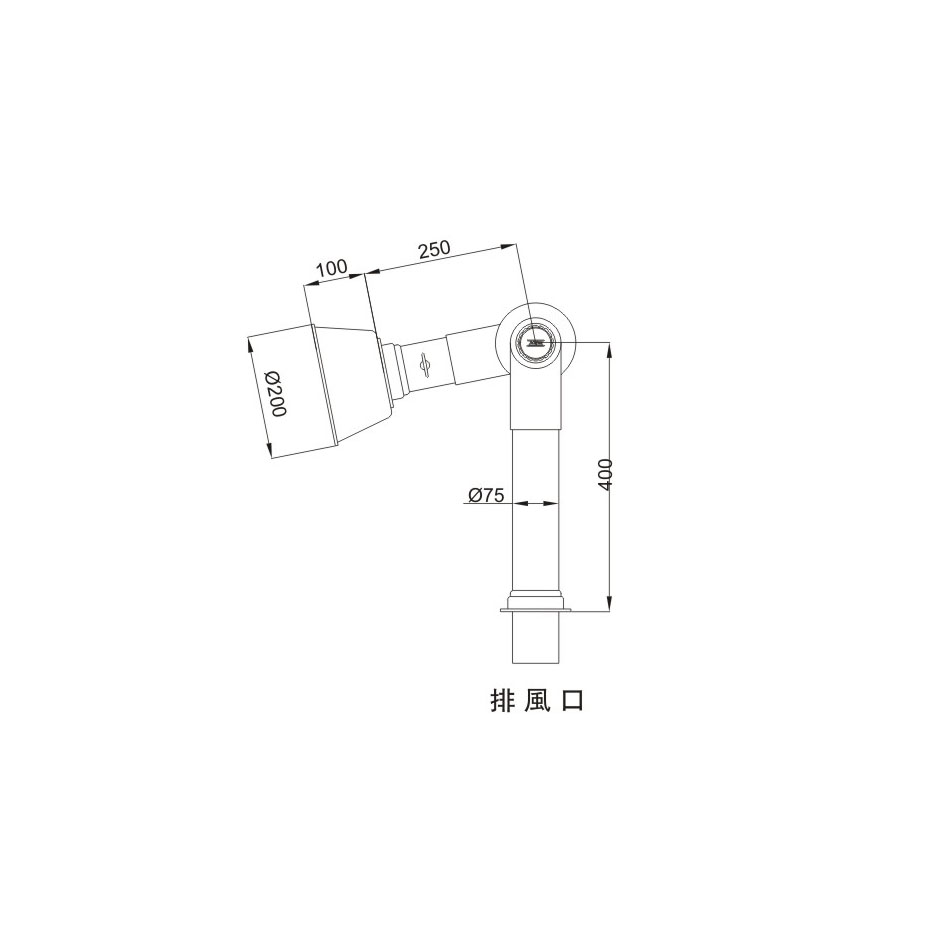

Bench-mounted Fume Extraction Arm
Pipe diameter: 75mm
Hood diameter: 230mm
Exhausting rate: 100cfm(180 m³/h)
